Custom Panel Hard Case Series

Mount holes for control/connector
panel on the hard case

These custom panel hard case series are designed to house electronic and control panels. Allows you to house your system in a rugged waterproof hard case box which you can bring out for outdoor field use.

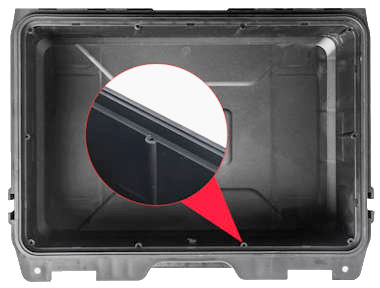

Panel mount holes position

Application

  • Portable demonstration case for the electrical system.
  • User interface control panel.
  • Wireless portable control system (battery operated).
  • Design your own hand-carry instrument or equipment for onsite measurement or testing.

Note: Please note that these CP series hard cases do not contain any sponge foam inside. Sponge foam can be ordered separately if needed.

Custom Panel Hard Case Sizes

The hard case is available in various sizes for your electronic system. Check out the sizes available below.

Custom panel hard cases

Search for your custom panel hard case below.

Product ID
(click ID for panel drawing)		Internal Space Dimension
(L x W x D mm)		Outer Size Dimension
(L x W x D mm)		Weight
CP01310 x 210 x 110 (30+80)340 x 270 x 1301.3Kg
CP02310 x 210 x 152 (30+122)340 x 270 x 1651.6Kg
CP03350 x 250 x 120 (30+90)380 x 310 x 1401.8Kg
CP04350 x 250 x 160 (30+130)380 x 310 x 1752.0Kg
CP05395 x 300 x 160 (30+130)425 x 355 x 1852.7Kg
CP06445 x 315 x 180 (35+145)480 x 390 x 2003.1Kg
CP10—
CP11—
CP15 (with wheels+handle)770 x 500 x 285 (60+225)840 x 570 x 325
Custom Panel Hard Case Sizes

Case Panel Dimension

These are the panel dimensions of the CP series hard case which you can use to customise your own panel.

Follow the dimension and the panel mounting hole’s position so that it can nicely fit to the respective hard case that you have selected.

CP01
CP02

CP01 CP02 panel dimension

CP03
CP04

CP03 CP04 panel dimension

CP05

CP05 panel dimension

CP06

CP06 panel dimension

Case Panel Support Dimension

Side groove support for the panel.
Product IDHW
CP017mm4mm
CP027mm4mm
CP037mm3.5mm
CP047mm4mm
CP05
CP064mm7mm
CP-10
CP-11
CP-15

More Features

Secure Lock Latch

Lock latch to secure the box.

There are also holes that allow you to use your own padlock to lock up the box case. This prevents people from opening up the box.

Waterproofing Seal

Seal prevent water/splash from seeping into the box.

Pressure Release Valve

Allow inside/outside air to equalize when traveling in different latitudes.

Custom panel fabrication.

Resources for standard panel cutout for Pelican cases.

https://www.datapro.net/help/custom_pelican_panels.html

Looking for a normal hard case with protective foam?

-> Click here for our hand-carry hard cases.

Customisation for Panel Case

Contact us for customised panel hard case, please click here.
